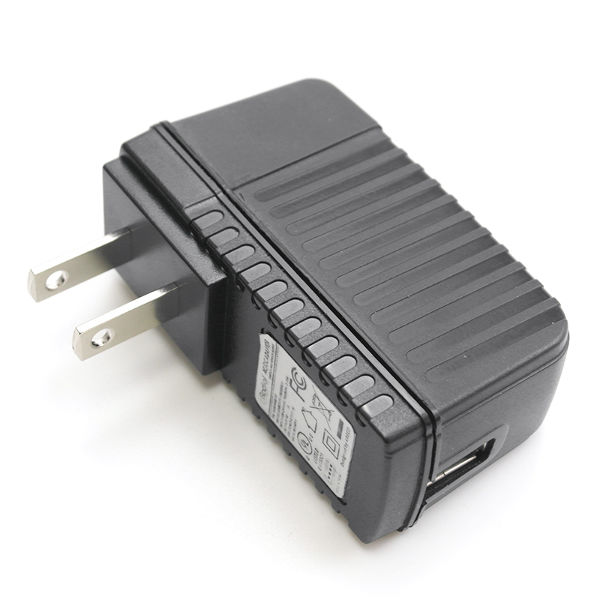

USB 5VDC 1A Class II Wall Switching Power Supply, Power Adapter, AC Power Adapter Power Adapter USB Chargers

Model number LY006SPS-050100UU#KRE-SAW
Mark KRECO
BILLY
Origin China
small orders Accepted

Key Specs/ Special Features:

  • 5VDC, 1000mA series external wall-mounted switching power supply (AC/DC adapter, AC/DC switching power supply adapter), Class II, LPS, universal input.
  • Custom designs are available
  • P/N: KRE-SAW
  • Model Number: LY006SPS-050100UU
  • Characteristics:
    • High efficiency
    • High reliability
    • With fuse,
    • Lightweight and convenient to plug in
    • low working temperature and low ripple noise
  • Reliability:
    • 100% full load, 40°C, 4 hours each part of this series can be sold separately
    • Leakage current: 0.25 mA, maximum at 264 VAC
    • MTBF: Meets MIL-HDBK-217F over 50,000 hours, full load, break-in at 25°C
    • Withstand voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
  • Emission and Immunity:
    • FCC Part15 Class B
    • En55013: 2001+A1: 2003+A2: 2006
    • En55020: 2007
    • EN61000-3-3: 2008
    • EN61000-3-2: 2006+A2: 2009
    • AN/NZS CISPR 13:2012
    • Subpart B: 2014
  • Certificates:
    • BS En60065/AS/NZS60065
    • IEC60065/EN60065/UL60065
    • J60065/GB8900/K60065
    • Certifications: UL, cUL, CE, CCC, PSE, GS, TUV, SAA, CQC, ETL, CETL, CB, FCC, EMC, RoHS
  • Working environment:
    • Storage: 10 to 95% RH
    • Operation: 0 to 40°C
    • Storage: -20 to 80°C
    • Operation: 10 to 95% RH
  • Protection:
    • Overcurrent protection
    • Over voltage protection
    • Short circuit protection
    • Thermal Shutdown Capability
  • Input specifications:
    • Input voltage: 100 to 240 V AC
    • Input frequency range: 50 and 60 Hz
    • Current: 150mA (maximum)
    • No load power: 0.3 W (240 V AC)
    • Inrush current (240V AC): 25A, cold 25°C
    • Plug type: wall mount
    • Efficiency: minimum 70 to maximum 90%
  • Output specifications:
    • Power: 5W
    • DC voltage: 5 V DC,
    • Output current: 1000mA
    • Voltage Accuracy: 5%
    • Ripple and noise: 100 mV
    • Regulation: Line: ±1%, Load: ±5%
    • DC output: USB port

Product certificates

Certificate standard EMC
Certificate Image

Click on the image to see a larger one

Certificate number RK12E06032
Date of issue 2016/05/19
Issued by Shenzhen Raise Technology Co., Ltd.
Expiration date 2025/12/30
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number RK12S06020
Date of issue 2016/05/19
Issued by Shenzhen Raise Technology Co., Ltd.
Expiration date 2025/12/30
Certificate standard FCC
Certificate Image

Click on the image to see a larger one

Certificate number RK12F06039
Date of issue 2016/05/19
Issued by Shenzhen Raise Technology Co., Ltd.
Expiration date 2025/12/30

To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.

Delivery Information

FOB port Zhongshan
Lead time 15 to 30 days
Weight per unit 0.065 kilograms
Dimensions per unit 7.5 x 4.3 x 3.0 centimeters
Units per export carton 100.0
Export Carton Dimensions 47 x 35 x 24 centimeters
export carton weight 13 kilograms
