Medical EN60601 Power Supply Manufacturer 12W AC Input 100-240V to DC Power Adapter 12V 24V, 12V 1A Power Adapter Wall Adapter Charger Medical Power Adapter EN60601

Model number YS12E #9520-#9908
Brand yingjiao
Origin China
small orders Accepted

Key Specs/ Special Features:

Medical EN60601 12W Power Supply Manufacturer AC 100-240V Input to DC 12V 24V Power Adapter
  • Rated power: 12W
  • Input voltage: 100-240 V AC, 50/60 Hz
  • Dimensions: 69*27*38mm
  • Features:
    • Safety: UL/cUL/TUV/GS/CE/EMC/CB/PSE/SAA/CCC Compliant
    • RoHS Compliant
    • REACH compliance
    • High efficiency and low energy consumption
    • Short circuit protection
    • Overcurrent protection
    • Over voltage protection
    • Light and compact
  • Environment :
    • Operating temperature: 0 to +40°C
    • Storage temperature: -40 to +70°C
    • Operating humidity: 10-90% RH, non-condensing
    • Storage humidity: 5 to 95% RH, non-condensing
  • Mechanical:
    • AC input socket: EU, US, UK and AUS types according to customer’s choice
    • Output socket: according to customer requirements
  • Packaging:
    • Quantity: 1 piece/plastic bag + inner box and 100 pieces/carton
    • Carton size: 45*28.5*31mm
    • Net weight: 76g

Product certificates

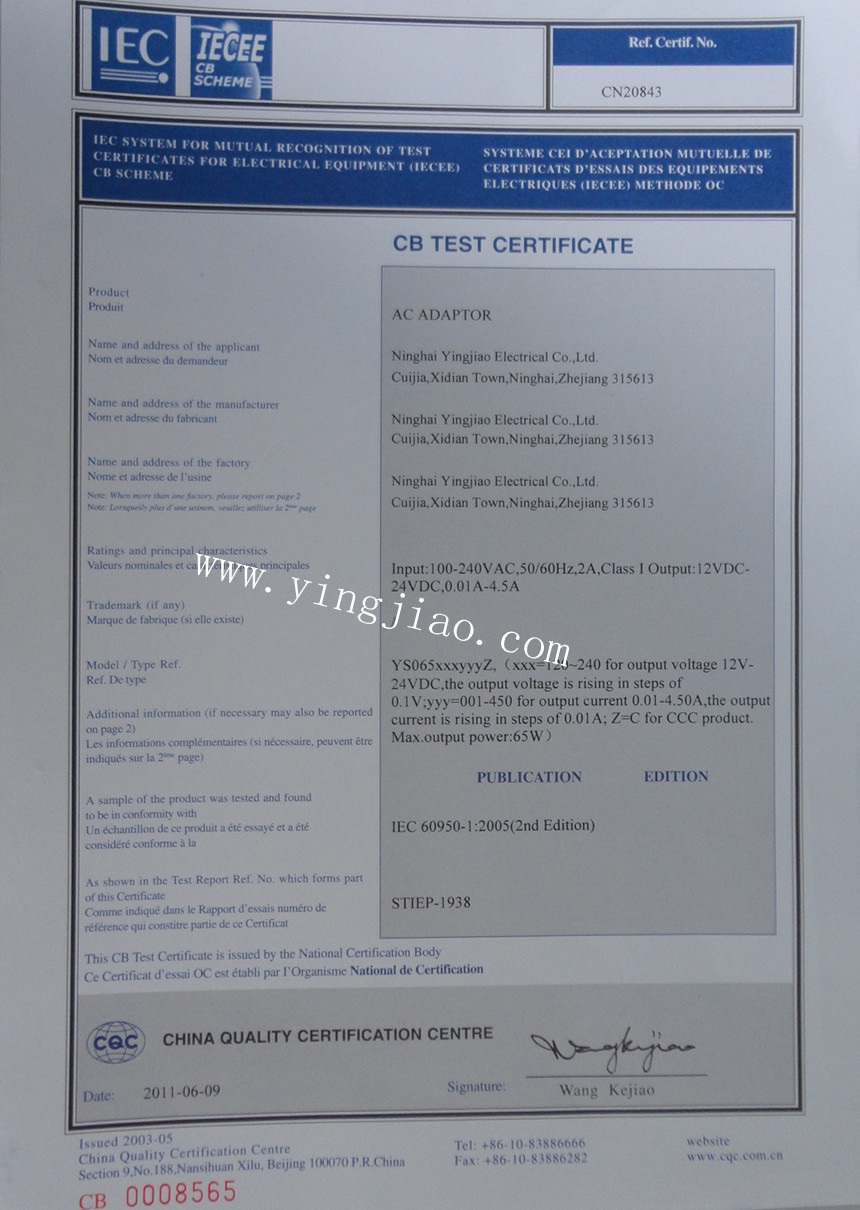

Certificate standard BC
Certificate Image

Click on the image to see a larger one

Certificate number CN20843
Date of issue 2011/06/08
Issued by CHINA QUALITY CERTIFICATION CENTER
Expiration date 2025/06/07
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number EN190114004E
Date of issue 2019/01/28
Issued by EMTEK
Expiration date 2023/01/27
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number 20PT1026002E 01
Date of issue 2020/12/06
Issued by PALTEK
Expiration date 2022/12/05
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number WEI-55032A-01A
Date of issue 2020/08/02
Issued by WALTEK
Expiration date 2025/08/01
Certificate standard GS
Certificate Image

Click on the image to see a larger one

Certificate number S50432503 0001
Date of issue 2019/04/15
Issued by TÜV Rheinland
Expiration date 2025/04/14

To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.

Delivery Information

FOB port Ningbo
Lead time 15–25 days
Weight per unit 100.0 grams
Dimensions per unit 7.0 x 3.0 x 4.0 meters
Units per export carton 100.0
Export Carton Dimensions 45 x 28.5 x 31 centimeters
export carton weight 11 kilograms

Main export markets

– Middle East/Africa

– North America

– Western Europe

– Asia

– Australasia

– Central/South America

– Eastern Europe
