Factory price battery connectors for energy storage systems, energy storage power connector connector for energy storage battery energy storage connector
Key Specs/ Special Features:
- Place of Origin: Henan, China
- Mark: saichuan
- Model Number: Energy Storage Connector
- Type: HV connector
- Application: Power Battery Assembly
- Gender: Female
- Pins: 1P
- Durability:> 500 times
- Operating temperature: -40°C~+125°C
- Degree of protection: IP67 (mated)
- Rated voltage: 600 V AC/1000 V DC
- Flammability rating: 94 V-0
- Resistance: 0.5 milliohm
- Dielectric strength: 3000 V AC
- Cable range: 10m㎡-150m㎡

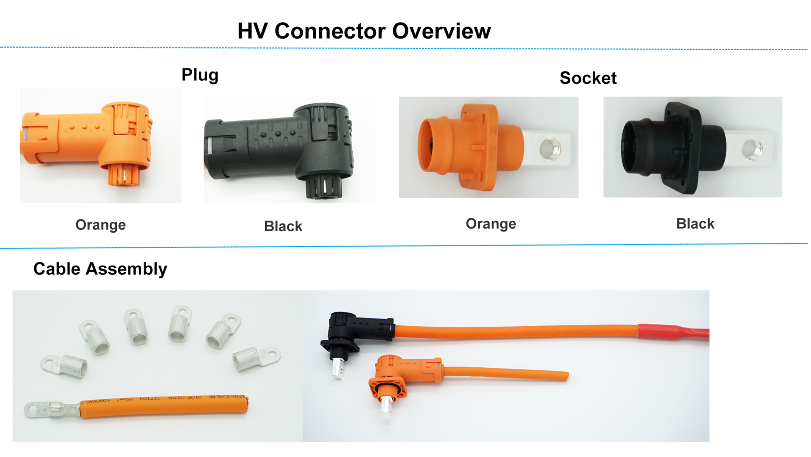

SS1 series products are connectors for energy storage systems.
Application Areas: Energy storage connectors are widely used in energy storage, electric vehicles, rail transportation, process control, automation and heavy equipment.
Energy Storage Connector Unique Features:
1. The product supports crimping first, then threading, and the production efficiency of the wiring harness is high
2. The socket of the product is individually sealed IP67 (optional), and the header can meet IP67 (optional) after being inserted.
3. The doll’s separation state conforms to IPXXB
4. With key position error prevention, color error prevention function
5. It can be inserted at any 360° angle, and 360° rotation can be achieved after insertion
6. With secondary lock function
Main products of Saichuan Electric Connection:
As a strategic start-up of Yutong Group, Saichuan Electronics is a national high-tech enterprise integrating scientific research, development, manufacturing and sales of high voltage cable, energy storage connector system, new energy charging connectors, high voltage connectors and high and low voltage wire harnesses.
Main advantages of Saichuan electrical connection:
1. Pay attention to technological innovation
Saichuan Electronics has developed core technology products with independent intellectual property rights.
2. Build Saichuan brand with quality
Saichuan Electronics has built an excellent comprehensive multi-dimensional experimental test platform in the industry.
3. Improve manufacturing capacity and service level
Saichuan Electronics has modern production lines and advanced equipment to provide considerate services.
1.Q: Are you a trading company or a manufacturer?
A: We are factory, with the belief that “good faith makes quality, quality wins the market”
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it’s 15-25 days if the goods are not in stock, it’s according to order quantity.
3.Q: What certifications do you have?
A: We have ISO9001, IATF16949, UL, CUL, VDE, RoHS, REACH and SGS for our connectors and cables.
3.Q: What is your payment term?
A: We have several payment terms for you, T/T, Western Union, L/C, etc.
4.Q: Can you do the design for us?
A: Yes, we have a professional team with rich experience in wire and cable design and manufacturing. Just tell us your demands, we will make the cable according to your requirements.
Click on the image to see a larger one
|Date of issue||2021/12/01|
|Issued by||TÜV Rheinland China Co. Ltd|
To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.
|Lead time||3 to 7 days|
|Weight per unit||1.0 kg|
|Dimensions per unit||40.0 x 35.0 x 30.0 centimeters|
|Units per export carton||100.0|
|Export Carton Dimensions||45 x 40 x 35 centimeters|
|export carton weight||2.5 kilograms|
Main export markets
– Central/South America
– Eastern Europe
– Middle East/Africa
– North America
– Western Europe
Download more information about this product
