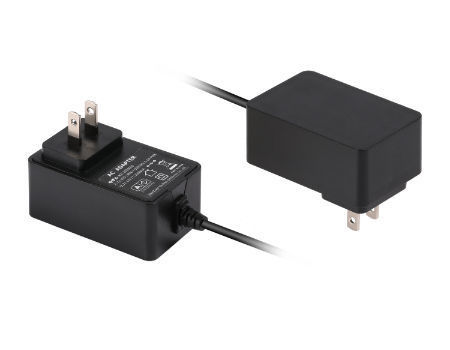

AC/DC Adapters Switching Power Supply Power Adapter with US Plug and UL, FCC Approved, AC/DC Adapters Power Supply Power Adapters
| Model number | PW-24010001 | ||||
|---|---|---|---|---|---|
| Mark | kezhen | ||||
| Origin | China | ||||
| small orders | Accepted | ||||
Key Specs/ Special Features:
Model available: EU, UL, EK, SAA, CCC
Application: computer products, household products, toys, multimedia, telecommunications, electrical tools and equipment, security products, etc.
Characteristics:
- AC input voltage: 100 – 240VAC, 50-60Hz
- Input current: 1.0 A (maximum)
- Rated output voltage: DC5.0V – 30.0V
- Rated output current: 0.0001A – 3.0A
- Full load efficiency: ≥ 70%
- Ripple and Noise:
- Standby power consumption: 0.3 W (at 240 VAC)
- Protection:
- Insulation resistances: ≥ 50MΩ
- Short protection:
- Overcurrent protection
- Over voltage protection
- Safety standard :
- EN60950-1
- UL60950-1
- ESD (EN61000-3-3)
- CSA(60950 )
- FCC part 15 subpart B class B
- AN/NZS CISPR 22: 2006
- Safety Approvals:
- CE (EMC, LVD), UL, FCC, TUV-GS, C-TICK, CEC, RoHS
Characteristics:
AC input voltage: 100 – 240VAC, 50-60Hz
Input current: 1.0 A (maximum)
Rated output voltage: DC5.0V – 30.0V
Rated output current: 0.0001A – 3.0A
Full load efficiency: ≥ 70%
Ripple and Noise: Standby power consumption: 0.3 W (at 240 VAC)
Protection:
Insulation resistances: ≥ 50MΩ
Short protection: Overcurrent protection
Over voltage protection
Safety standard :
EN60950-1
UL60950-1
ESD (EN61000-3-3)
CSA(60950 )
FCC part 15 subpart B class B
AN/NZS CISPR 22: 2006
Safety Approvals:
CE (EMC, LVD), UL, FCC, TUV-GS, C-TICK, CEC, RoHS
Product certificates
| Certificate standard | THIS | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | SA1809236L01001 | ||||
| Date of issue | 2018/09/11 | ||||
| Issued by | OLD TEST | ||||
| Expiration date | 2024/09/12 | ||||
| Certificate standard | UL | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | e318298 | ||||
| Date of issue | 2018/07/12 | ||||
| Issued by | ul | ||||
| Expiration date | 2025/07/13 | ||||
| Certificate standard | FCC | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | 18EA05161F001 | ||||
| Date of issue | 2018/06/14 | ||||
| Issued by | Shenzhen SEM Test Technology Co., Ltd. | ||||
| Expiration date | 2024/06/15 | ||||
| Certificate standard | RSST | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | C190905026001-1 | ||||
| Date of issue | 2019/09/17 | ||||
| Issued by | CPST | ||||
| Expiration date | 2025/09/16 | ||||
To note:
product.certifyingTips
Delivery Information
| FOB port | Shenzhen | ||||
|---|---|---|---|---|---|
| Lead time | 18–25 days | ||||
| Weight per unit | 145.0 grams | ||||
| Dimensions per unit | 8.2 x 4.9 x 3.15 centimeters | ||||
| US HTS code | 8504.40.14 00 | ||||
|---|---|---|---|---|---|
| Units per export carton | 50.0 | ||||
| Export Carton Dimensions | 40 x 39 x 18 centimeters | ||||
| export carton weight | 8.25 kilograms | ||||
Main export markets
– Asia
– Australasia
– Central/South America
– Eastern Europe
– Middle East/Africa
– North America
– Western Europe
