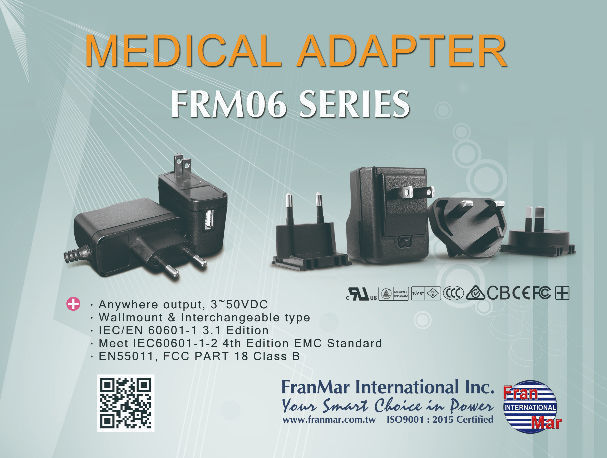

12V 6.5W European type medical power supply with USB port, UL/EN/IEC60601-1 3.1 ed approved, FranMar brand, medical power supply Medical adapter Medical plug
| Model number | FRM06-S12-EU | ||||
|---|---|---|---|---|---|
| Mark | FranMar | ||||
| Origin | China | ||||
Key Specs/ Special Features:
Output voltage: 12V
Output current: 0.54A
Maximum power: 6.5W
Characteristics:
Universal input
Single Outlet, EURO Wall Mount Type
Protections: OVP, OLP and short circuit protection
Characteristics:
Input voltage: 90 to 264 VAC
Input frequency range: 47 to 63 Hz
Input current: 0.3A max. at 100 VAC full load
Load regulation: 5% maximum
Withstand voltage: I/PO/P(V+): 5656 V DC
Leakage current: 0.1mA maximum
Operating temperature: -10 to 60°C (linear derating from 100% load at 40°C to 50% load at 60°C)
Storage temperature: -20 to 85°C
Protections: OVP, OLP and short circuit protection
Safety standard: IEC/UL/EN60601-1, CE, CB
EMC standard: (EN55011, CISPR22 and FCC Part 18) class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8 and 11
Standard output connector: DC barrel jack
Output Cable Standard/Length: UL2468/1.5M
Product certificates
| Certificate standard | TÜV | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | TA50219732_FRM06 | ||||
| Date of issue | 2017/09/13 | ||||
| Issued by | TÜV Rheinland | ||||
| Expiration date | 2022/09/12 | ||||
To note:
product.certifyingTips
Delivery Information
| FOB port | Shenzhen | ||||
|---|---|---|---|---|---|
| Lead time | 35–45 days | ||||
| Weight per unit | 80.0 grams | ||||
| Dimensions per unit | 6.3 x 2.78 x 4.2 centimeters | ||||
| US HTS code | 8504.40.94 00 | ||||
|---|---|---|---|---|---|
| Units per export carton | 60.0 | ||||
| Export Carton Dimensions | 39 x 33 x 21 centimeters | ||||
| export carton weight | 6 kilograms | ||||
Main export markets
– Eastern Europe
– Western Europe
– Central/South America
