100-240Vac 180W 24V 7.5A AC DC Adapter, Switch Power Supply for CCTV Security Monitoring, AC DC Power Supply Adapter Power Supply Adapter
| Model number | PC-240075-6 | ||||
|---|---|---|---|---|---|
| Mark | Pengchu | ||||
| Origin | China | ||||
| small orders | Accepted | ||||
Key Specs/ Special Features:
100-240Vac 180W 24V 7.5A AC DC Adapter Switch Power Supply for CCTV Security Monitoring
- Universal/full range AC input (up to 264V AC)
- Protections: short circuit/overload/overheating
- High efficiency, long life and high reliability
- Complies with international safety standards, CE FCC RoSH Approved
- 100% full load break-in test
- Two-year warranty
| Characteristics | |
| Model number | PC-240075 |
| AC input | |
| Rated input voltage | 100-240V AC |
| Input voltage range | 90-264V AC |
| Input frequency | 50/60Hz |
| DC output | |
| Output voltage | 24V |
| output current | 7.5A |
| output power | 180W |
| DC connector size | 4 pin/6 pin bare wire or your request |
| Voltage tolerance | ±5% |
| Line regulation | ±1% |
| Load regulation | ±5% |
| Ripple and noise | |
| Efficiency | >88% |
| DC cable length | 1.2/1.5/1.8m or customized |
| Insulation resistance | 100M ohm |
| Dielectric strength voltage (high pot) |
100% of the line products of this adapter must be applied 3000 V AC or 4242 V DC for at least 1 minute between the AC input terminals and the output terminals Cut-off current is specified as 10mA |
| Ecological | |
| Operating temperature | -10 to 50°C (±10°C) |
| Operating humidity | 20-90% RH |
| Storage temperature | -40 to 80°C (±10°C) |
| Storage humidity | 20-90% RH |
| protection | |
| Overload protection | Overcurrent protection |
| Overcurrent protection | Overheat protection |
| Certificates | |
| Complies with CE, RoHS, FCC, | |
| Dimensions | |
| Adapter size | 168*75*50mm |
| Adapter weight | 0.67kg |
| Amount | 20 pieces |
| Outer carton size | 48.5*30.5*30.5cm |
| Gross weight/carton | 20.5kg |
| Wrap | |
| inner box | Normally brown box or custom requirements |
| outer packaging | Normally standard export carton or customized requirements |
| guarantee | |
| guarantee | 2 years |
| Terms and conditions | |
| Minimum purchase quantity | 100 pieces |
| Payment terms | T/T, PayPal, Western Union, Ali Assurance Trade |
| Delivery time | 9-12 business days |
| Test procedures | |
| 1. No-load output voltage test→2. input power load test→3. no-load output ripple test→4. full load open test→5. full load output voltage test→6. full load output ripple test→7. full load input power test→8. output voltage test at half load→9. output ripple test at half load→10. overload test→11. overcurrent protection test →12. short circuit protection test (the above test is under 110V and 230V.)→13. high voltage test→14. burn-in test→15. enable delay time test→16. rise time test→17. dwell time test→18. overshoot test | |

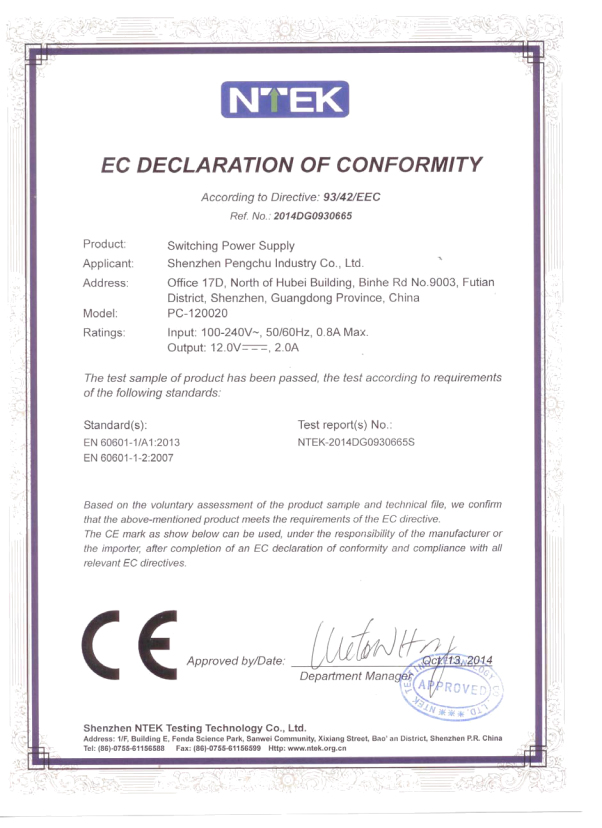

Product certificates
| Certificate standard | THIS | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | 2014DG0930665 | ||||
| Date of issue | 2014/11/12 | ||||
| Issued by | NTEK Testing Technology Co.,Ltd | ||||
| Expiration date | 2025/11/12 | ||||
| Certificate standard | THIS | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | ATSZAIS180320003 | ||||
| Date of issue | 2018/03/27 | ||||
| Issued by | Shenzhen Anbotek Compliance Lab Limited | ||||
| Expiration date | 2025/03/27 | ||||
| Certificate standard | RSST | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | AT011611854R | ||||
| Date of issue | 2016/12/19 | ||||
| Issued by | Shenzhen Anbotek Compliance Lab Limited | ||||
| Expiration date | 2025/12/19 | ||||
| Certificate standard | UL | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | E499459 | ||||
| Date of issue | 2020/06/09 | ||||
| Issued by | UL | ||||
| Expiration date | 2025/06/09 | ||||
| Certificate standard | CC | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | DK-97634-UL | ||||
| Date of issue | 2020/05/26 | ||||
| Issued by | UL | ||||
| Expiration date | 2025/05/26 | ||||
| Certificate standard | |||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | GMA-507227-EA | ||||
| Date of issue | 2020/05/01 | ||||
| Issued by | global-brand | ||||
| Expiration date | 05/01/2025 | ||||
| Certificate standard | FCC | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the image to see a larger one |
||||
| Certificate number | DGH200508006-03 | ||||
| Date of issue | 2020/05/18 | ||||
| Issued by | ntek-test | ||||
| Expiration date | 2025/05/18 | ||||
To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.
Delivery Information
| FOB port | Shenzhen | ||||
|---|---|---|---|---|---|
| Lead time | 9–12 days | ||||
| Units per export carton | 20.0 | ||||
| Export Carton Dimensions | 48.5 x 30.5 x 30.5 centimeters | ||||
| export carton weight | 21.5 kilograms | ||||
|---|---|---|---|---|---|
Main export markets
– Asia
– Australasia
– Central/South America
– Eastern Europe
– North America
– Western Europe
